The excellent workflow integration available within CST Studio Suite® provides reliable data exchange options which help to reduce the design engineer’s workload.

CST Studio Suite is renowned for its superb CAD and EDA data import capabilities. The sophisticated healing mechanisms, which restore the integrity of flawed or non-compliant data, are particularly important as even one corrupted element can prevent the use of the whole part.

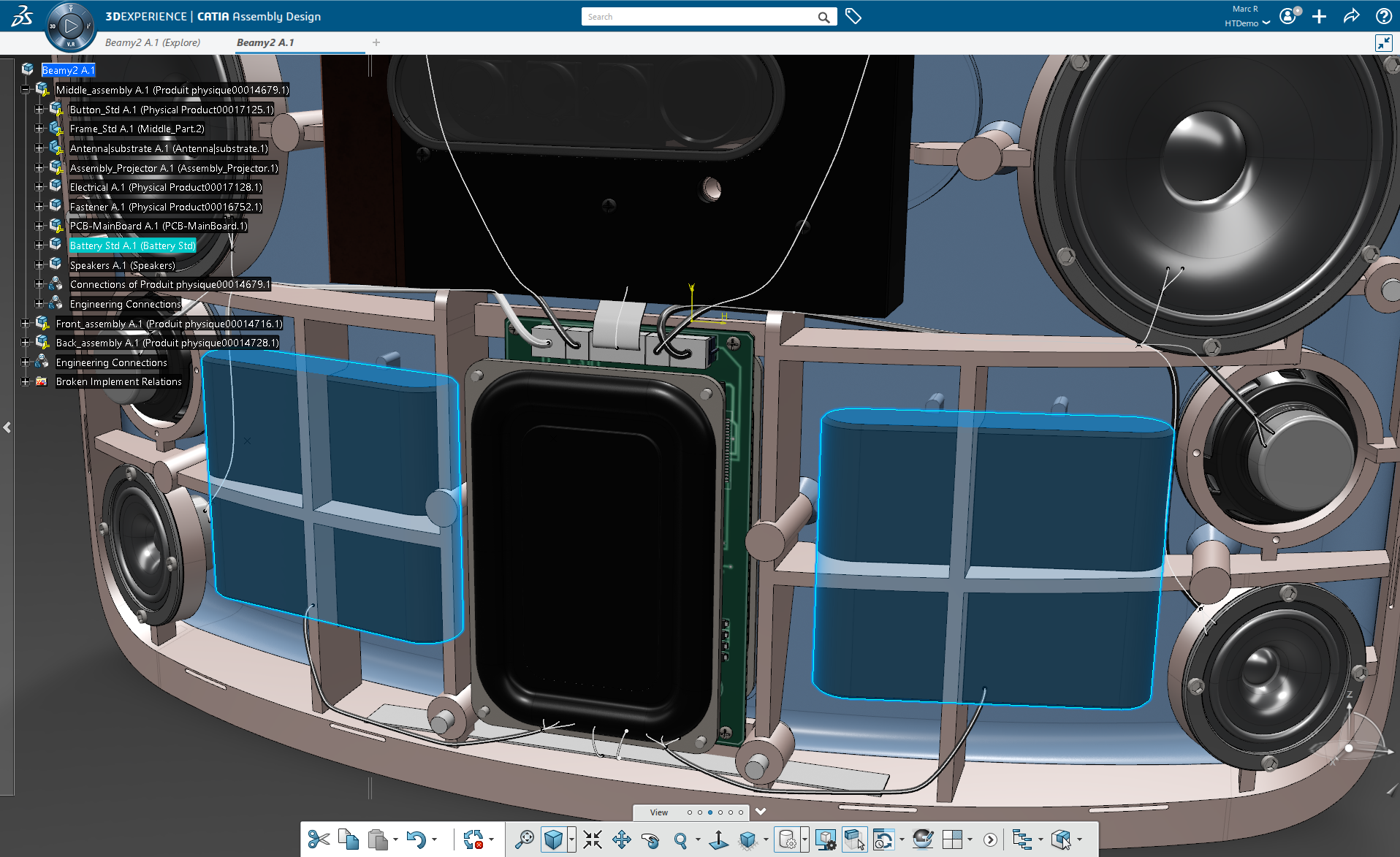

Fully parametrized models can be imported and design changes are instantly reflected in the simulation model due to the bidirectional link between CAD and simulation. This means that the results of optimizations and parametric design studies can be imported back directly into the master model. This improves workflow integration and reduces the time and effort needed to optimize a design.
