Wire Dipole Antenna Simulation

Self-guided learning

This example of a wire dipole antenna contains a short description of the theory, detailed information on how to construct the model, a video showing how to construct the model, and the fully constructed model ready for you to download.

When working through the example, you may notice some small differences in your model compared to ours – this is usually simply due to the fact that you are using a different software version.

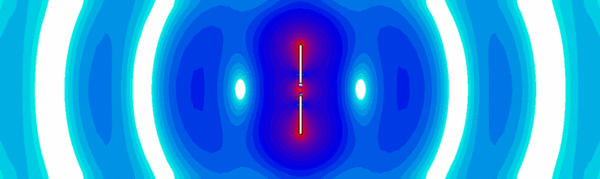

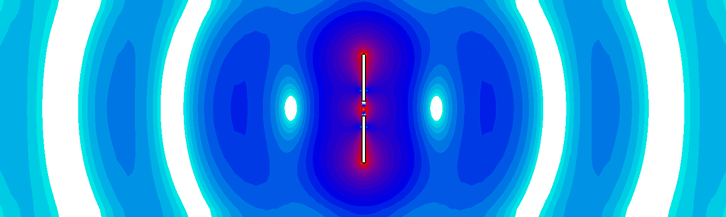

Figure 1: E-field phase animation of a dipole antenna showing the broadside radiation of this antenna.

The Physics

The half-wavelength dipole antenna is a simple dipole whose length is a half-wavelength of the operation frequency. It is a balanced antenna and its characteristics are well known by the theory and can be found in [1]. It has a broadside radiation with a torus-like radiation pattern (Fig. 2), with a maximum theoretical directivity of 1.643 and an input impedance of 73 Ω.

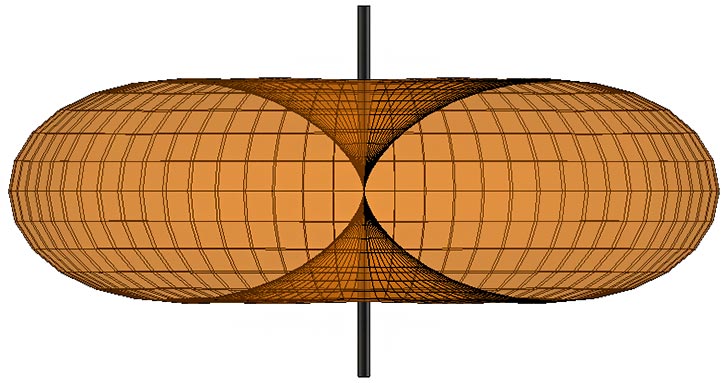

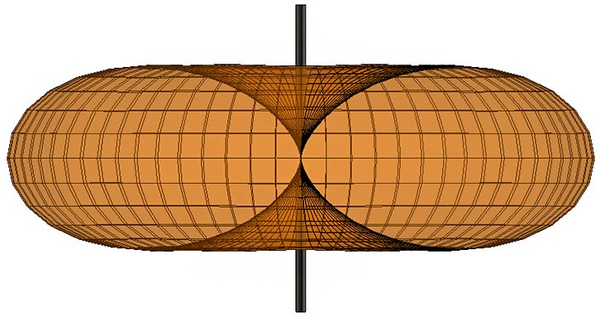

Figure 2: Radiation pattern of a half-wavelength dipole antenna

The Model

The half-wavelength dipole antenna operating at 1 GHz can be modeled in CST Studio Suite® as two cylinders separated by a small gap as shown in Fig. 3, driven by a discrete face port between the two. The parameters used in the final model are shown in Table 1. The dipole length has been adjusted to tune the antenna to 1 GHz. For more information on this tuning process, see the Construction Help.

Parameter

Value

Description

L

135.6mm

Dipole length

Gap

20 mm

Feeding gap of the antenna

D

5mm

Diameter of the conductor

Z0

73Ω

Port impedance

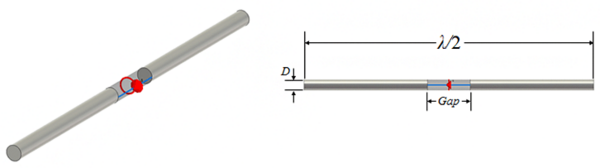

Figure 3: Half-wavelength dipole modeled in CST Studio Suite using simple geometric primitives, showing the main dimensions and the face port.

Discussion of Results

Fig. 1 shows the E-field phase animation. On that animation we can see the broadside radiation of the dipole. In Fig. 4 the S-parameter of the dipole is shown and its directivity is plotted on Fig. 5. The S-parameter shows that the antenna is resonant at 1 GHz and the farfield at this frequency shows the torus-like radiation pattern and a maximum directivity of 1.67, close to the number predicted by the theory.

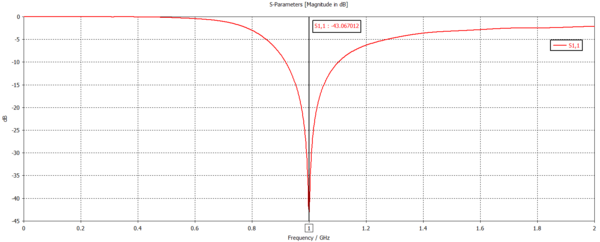

Figure 4: S-parameter result of a half-wavelength dipole antenna designed to operate at 1 GHz.

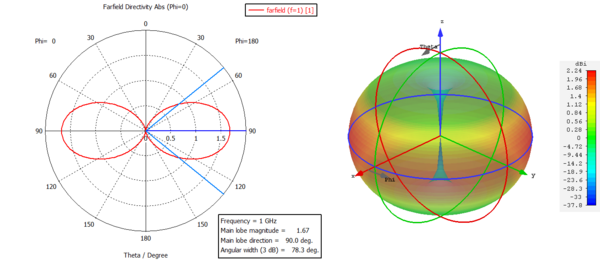

Figure 5: Farfield plot of the directivity of a half-wavelength dipole. On the left side the farfield directivity in linear scale is plotted on the elevation plane. On the right side the 3D pattern of the farfield is shown in dBi

Additional Tasks

  • According to theory, the dipole impedance is ~ 73Ω. Parametrize the discrete face port impedance and perform a parameter sweep on it, adjusting the impedance at 25Ω intervals. Observe what happens with the S11. How does impedance correlate with the directivity and realized-gain plots?
  • A plane wave is used to illuminate a dipole antenna as shown in Fig. 6. The antenna is a dipole with resonant frequency of 250 MHz. The voltage results in the antenna terminals are shown in Fig.7 against the S-parameter result. Looking at the farfield results of the dipole, explain why the antenna does not pick up significant energy from the plane wave at higher frequencies, even though there are resonances in the S-parameters.

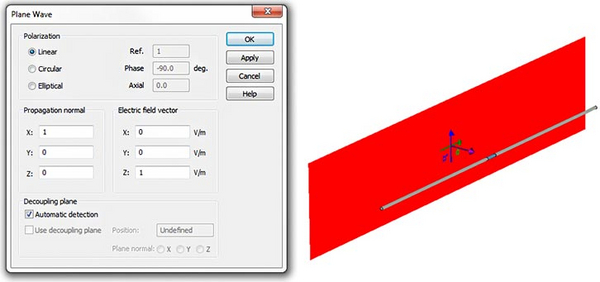

Figure 6: Plane wave used to illuminate the dipole. Note that the E-field is linearly polarized and propagates in the X direction, with the E-field vector pointing in the Z direction.

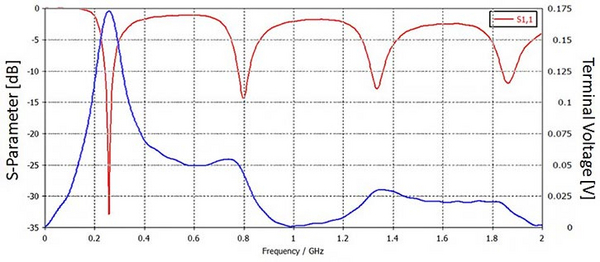

Figure 7: Broadband S-parameter result of a dipole with central frequency at 250 MHz in red. In blue is the voltage at the antenna terminals when it is illuminated by a plane wave with 1 V/m.

Electromagnetics on the SIMULIA Community

You can fine more material on electromagnetics on the SIMULIA community

If you are not a member of the community yet, Please follow to get registered.

References

  • [1] C.A. Balanis, Antenna Theory: Analysis and Design, 3rd Edition, Wiley-Interscience, pp. 182-184
