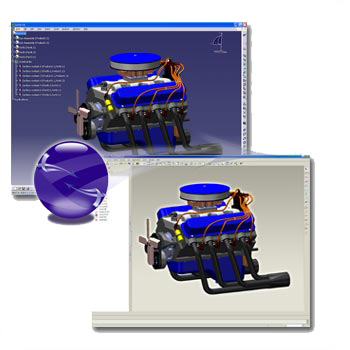

CATIA V5 / Pro-Engineer CADverter

PARTNER SOLUTION

Product OverviewThe CATIA V5 JT CADverter is a bi-directional direct database converter between the CATIA V5 Modeling Application and the JT file format, used by the Siemens Teamcenter Visualization products. It enables the user to convert all forms of 3 Dimensional Mechanical Design Geometry and Assembly data, together with system defined attribute information and colour information, between these two systems.This product is designed for CATIA V5 users who have selected JT to be their visualization system and therefore need to translate their CATIA V5 data into the JT format, or who need to send/receive JT files to/from customers or suppliers.The translator can be invoked in either an interactive or batch mode with the command line interface allowing the conversion process to be integrated into any process oriented operation. Alternatively the conversion process may be operated by using a standard Graphical User Interface.Main Features Converts all types of geometry, wire frame, surfaces, trimmed surfaces (faces) and solid models. Converts assembly structure between the systems. Converts attribute data including colour and layer information. Integrated with the CATIA V5 installation. The conversion process can be run Interactively or Batch mode. Command line interface allows process integration. Data can be filtered by layer and entity type during processing. Geometry can be filtered and selectively processed. Uses the CATIA API and Siemens JTOpen API to read and write data. In creating JT files a number of data types can be generated. A facetted representation, a JT Brep definition or an XT Brep definition. As standard a facetted representation is created withthe user selecting whether JT or XT Brep definition is created.

PARTNER SOLUTION

Product OverviewThe CATIA V5 Adapter for Creo View is a direct data converter from CATIA V5 to Creo View, PTC’s visual collaboration product. The adapter rapidly and accurately publishes 3D mechanical design geometry parts, assemblies and 2D drawings, together with attribute information to the compact formats used by the Creo View application.Designed to be compatible with other PTC Creo View adapters, the adapter can be integrated into Windchill, DIVISION Graphics Server or other PDM environments.The adapter directly accesses native CATIA V5 parts, assemblies and drawing files using the Spatial, Dassault Systemes supported programming interface. Assembly structure details and geometry colour information is retained during translation. Output file characteristics such as tessellation details are configured using the standard PTC Recipe File Editor.The Adapter may be installed on a number of machines each accessing a central network-floating license.Main Features Converts CATPart geometry including analytic data, solid models, and surfaces to the Creo View “.ol” file format. Converts CATProduct assembly structure and part orientations to the Creo View “.pvs” file format. Converts attribute data such as meta-data, coluor and layer information and V5 properties. Retains accuracy of data in Creo View allowing accurate measurements, sections etc. Converts CATDrawings to various 2D formats e.g DXF &TIF for viewing within Creo View. Configuration compatible with other PTC Creo View adapters Optional integration with Windchill, DIVISION Graphics Server as a standard “Worker” application. Also able to be integrated with other PDM environments. Operates in both command-line and batch modes Standard CADverter GUI available Configurable to output earlier versions of Creo View data Able

PARTNER SOLUTION

PARTNER SOLUTION

Product OverviewCADverter is a direct database converter between CADDS and CATIA V5. It enables the user to convert all forms of mechanical design geometry, as well as assembly and attribute information, between these two systems.CADverter can be purchased as a uni-directional, CADDS to CATIA V5, or CATIA V5 to CADDS product, or as a bi-directional product. It can be used Interactively or in a batch mode, from a standard Graphical User Interface. If you wish to visualise and interrogate the CADDS files this can be done by using the integrated CADviewer product, which is included with CADverter.This product has been developed using the Dassault Systems CATIA V5 CAA Development Environment. Consequently it requires access to a licensed copy of CATIA V5 to operate.CADverter reads and writes CADDS data independent of the native CAD System and converts all geometry. If assembly data (product structure) is in the file, the assembly structure will be mapped between the two systems as well as colour and layer information. The user can filter data to optimise the process.Main Features Converts all types of geometry, wire frame, surfaces, trimmed surfaces (faces) and solid models. Converts assembly structure between the systems. Converts attribute data including colour and layer information. Reads and Writes CADDS files independently of CADDS. The conversion process can be run interactively or in batch mode. CADviewer enables you to view the CADDS files before and after conversion. Data can be filtered by layer and entity type. Geometry can be filtered and selectively processed.

PARTNER SOLUTION

Product OverviewCADverter is a direct database converter between CATIA V5 and ICEM Surfdb. It enables the user to convert all forms of mechanical design geometry, and CATIA V5 assembly structure that will be put into a single file, it also converts attribute information, between these two systems.CADverter can be purchased as a uni-directional, CATIA V5 to ICEM Surf, or ICEM Surf to CATIA V5 product, or as a bi-directional product.It can be used Interactively or in a batch mode, from a standard G.U.I interface.CADverter reads and writes CATIA V5 and ICEM Surfdb data and converts all geometry. If CATIA V5 assembly data (product structure) is in the file, the assembly structure will be created as a single ICEM file plus all layer information. The user can filter data to optimise the process.Main Features Converts all types of geometry, wire frame, surfaces, trimmed surfaces (faces) and solid models. Reads CATIA V5 parts and assembly files. Reads and Writes ICEM Surfdb files independently of ICEM Surf. The conversion process can be run Interactively or in Batch mode. Data can be filtered by layer and entity type. Geometry can be filtered and selectively processed.

PARTNER SOLUTION

Product OverviewCADverter is a direct database converter between CATIA V5 and Parasolid. It enables the user to convert all forms of mechanical design geometry, as well as assembly and attribute information, between these two systems.CADverter can be purchased as a uni-directional, CATIA V5 to Parasolid, or Parasolid to CATIA V5 product, or as a bi-directional product.It can be used Interactively or in a batch mode, from a standard G.U.I Interface.If you wish to visualise and interrogate the Parasolid files this can be done by using the integrated CADviewer product, which is included with CADverter.CADverter reads and writes CATIA V5 and Parasolid data and converts all geometry. If assembly data (product structure) is in the file, the assembly structure will be mapped between the two systems.The user can filter data to optimise the process.Main Features Converts all types of geometry, wire frame, surfaces, trimmed surfaces (faces) and solid models. Converts assembly structure between the systems. Reads and Writes Parasolid files independently of Parasolid based applications. The conversion process can be run Interactively or in Batch mode. CADviewer enables you to view the Parasolid files before and after conversion. Data can be filtered by layer and entity type. Geometry can be filtered and selectively processed.

PARTNER SOLUTION

Product OverviewCADverter is a direct database converter between CATIA V5 and Siemens NX. It enables the user to convert all forms of mechanical design geometry, as well as assembly and attribute information, between these two systems.CADverter can be purchased as a uni-directional, CATIA V5 to Siemens NX, or Siemens NX to CATIA V5 product, or as a bi-directional product.It can be used interactively or in a batch mode, from a standard G.U.I Interface. If you wish to visualise and interrogate the files this can be done by using the integrated CADviewer product, which is included with CADverter.CADverter reads and writes CATIA V5 and Siemens NX data and converts all geometry. If assembly data (product structure) is in the file, the assembly structure will be mapped between the two systems as well as colour information. The user can filter data to optimise the process.Main Features Converts all types of geometry, wire frame, surfaces, trimmed surfaces (faces) and solid models. Converts assembly structure between the systems. Converts attribute data including colour and layer information. The conversion process can be run Interactively or in Batch mode. Data can be filtered by layer and entity type. Geometry can be filtered and selectively processed.

PARTNER SOLUTION

Product OverviewCADverter is a direct database converter between CATIA V5 and I-DEAS. It enables the user to convert all forms of mechanical design geometry, as well as assembly and attribute information, between these two systems.CADverter can be purchased as a uni-directional, CATIA V5 to I-DEAS, or I-DEAS to CATIA V5 product, or as a bi-directional product. It can be used Interactively or in a batch mode, from a standard G.U.I Interface.CADverter reads and writes CATIA V5 and I-DEAS data and converts all geometry. If assembly data (product structure) is in the file, the assembly structure will be mapped between the two systems as well as colour information.The user can filter data to optimise the process.Main Features Converts all types of geometry, wire frame, surfaces, trimmed surfaces (faces) and solid models. Converts assembly structure between the systems. Converts attribute data including colour information. The conversion process can be run Interactively or in Batch mode. Data can be filtered by layer and entity type. Geometry can be filtered and selectively processed.

PARTNER SOLUTION

The 3DVIA Composer JT Plug-in CADverter is a direct database converter between the JT file format, used by the Siemens Teamcenter Visualization products, and Dassault Systèmes 3DVIA Composer application. It enables users to interactively open JT data directly into the 3DVIA Composer environment. Once data has been opened it can be completely manipulated using the extensive functionality of the 3DVIA Composer application, allowing the user to access any product structure information, and geometry, while authoring 3DVIA Composer output. In addition to assembly structure and geometry information any JT Product Manufacturing Information (PMI) data is also converted enabling it to be used for manufacturing output purposes .As well as the interactive solution there are also two optional licenses available to automate the creation of 3DVIA Composer output using the 3DVIA Sync or 3DVIA Enterprise Sync interfaces. The 3DVIA Sync interface enables the creation of 3DVIA Composer .smg output using the batch mode translator. The use of the 3DVIA Enterprise Sync command line interface allows the conversion process to be integrated into any process oriented operation e.g the creation of 3DVIA Composer .smg representations of the JT data as an automated process within a Product Lifecycle Management workflow.This product has been developed using a combination of the Siemens JT Open and Dassault Systèmes strategic XCAD technology, ensuring full compatibility with both systems.JT assembly and tessellated or BREP geometry is translated into native 3DVIA Composer assembly structure and geometry definitions. JT PMI (Product Manufacturing Information) is created as equivalent 3DVIA Composer data structures.

PARTNER SOLUTION

PARTNER SOLUTION

Theorem's V6 JT 3DXML CADverter enables the unrestricted data transfer between V6 and JT data using the 3DXML file format.The V6 JT 3DXML CADverter integrated within the V6 environment enables bi-directional file and PDM collaboration scenarios. It can be used interactively or in batch mode depending upon a user's requirements. As standard, this particular product has been designed specifically to be incorporated into process oriented operations and so is integrated and runs under the management of the V6 infrastructure.Theorem’s CADverter reads and writes both V6 and Siemens JTOpen data, converting assembly data (product structure) Exact Brep solids and surfaces, tessellated data, PMI (product manufacturing information) and colour. The V6 converted data can then be used anywhere within the V6 environment, in all applications (CATIA, DELMIA, SIMULIA, ENOVIA) enabling supply chains with mixed V6 and JT environments the ability to collaborate more efficiently.Theorem’s CADverter also provides the ability to convert JT data into 3DXML files for collaboration with all applications collaborating through this format, such as CATIA, DELMIA, SIMULIA, ENOVIA, 3DLive, 3DVIA and 3DSWYM.The use of Dassault Systemes strategic XCAD and Siemens JT Open technology ensures full compatibility, delivers high quality data and business benefits.

PARTNER SOLUTION

Theorem’s bi-directional CADverter V6 NX CADverter reads and writes both V6 and Siemens NX data, converting assembly data (product structure) Exact Brep solids and surfaces, tessellated data, PMI (product manufacturing information) and colour.The V6 NX CADverter integrated within the V6 environment enables bi-directional file and PDM collaboration scenarios. It can be used interactively or in batch mode depending upon a user's requirements. As standard, this particular product has been designed specifically to be incorporated into process oriented operations and so is integrated and runs under the management of the V6 infrastructure.The V6 converted data can then be used anywhere within the V6 environment, in all applications (CATIA, DELMIA, SIMULIA, ENOVIA) enabling supply chains with mixed V6 and NX environments the ability to collaborate more efficiently.Theorem’s CADverter also provides the ability to convert NX into 3DXML files for collaboration with all applications collaborating through this format, such as CATIA, DELMIA, SIMULIA, ENOVIA, 3DVIA and 3DSWYM.

PARTNER SOLUTION

Theorem’s bi-directional V6 Creo Parametric CADverter reads and writes both V6 and PTC Creo data, converting assembly data (product structure) Exact Brep solids and surfaces, tessellated data, PMI (product manufacturing information) and colour.The V6 Creo Parametric CADverter is fully integrated within the V6 environment enabling bi-directional file and PDM collaboration scenarios. It can be used interactively or in batch mode depending upon a user’s requirements. As standard, this particular product has been designed specifically to be incorporated into process orientated operations and so is integrated and runs under the management of the V6 infrastructure.The V6 converted data can then be used anywhere within the V6 environment, in all applications (CATIA, DELMIA, SIMULIA, ENOVIA) enabling supply chains with mixed V6 and Creo environments the ability to collaborate more efficiently.Theorem’s CADverter also provides the ability to convert Creo data (Creo Parametric and Creo View) into the 3DXML file format for collaboration with all applications collaborating through this format, such as CATIA, DELMIA, SIMULIA, ENOVIA, 3DVIA and 3DSWYM.

PARTNER SOLUTION

Theorem's advanced data translation tools are paving the way for new functionality to support Dassault Systemes' MultiCAx initiative - which calls for interoperability to be in the hands of users, so that "design in context" can be undertaken without the need for external translation of non CATIA V5 parts. With the option in a future module to bring in FTA data from Pro/E, manufacturing users will have all of the information needed to make the part. Within the MultiCAx environment, CATIA V5 users are able to select a part or assembly designed in Pro/E, and cause it to appear as a node on their CATIA V5 design tree; either as a single component or full assembly, as appropriate. A prime objective of Theorem Solutions MultiCAX Plug-In product is to enable the use of Pro/E data parts, assemblies and 3D dimensions and annotations (FTA) inside a V5 session. The 3D dimension and annotation feature will be a separate optional licensed feature and available in 2009. The user will be able to manipulate heterogeneous CAD data for Review and Design in context purposes with a link back to the Pro/E data. Pro/E Multi-cad import is built upon the strategic DS XCAD CAA platform, this platform enables the Import of data to V5 with integrated control of quality. This application also supports the capability of outputting the data in 3DXML format. This MultiCAX Plug-In as well as enabling the user to generate data that is linked back to the original Pro/E representation, and therefore support the ability to track and update respective to changes, it will also support Design in Context DMU and explicit design modification. Using the Plug-In with explicit modification enables the data to be subsequently modified within CATIA but removes all links back to the originating Pro/E data. The application whilst it can be operated interactively within CATIA V5 will also be able to be run in batch mode from a command line interface external to CATIA V5.

PARTNER SOLUTION
