Interactive Fitting for CATIA V5

Interactive Fitting Core for Catia™

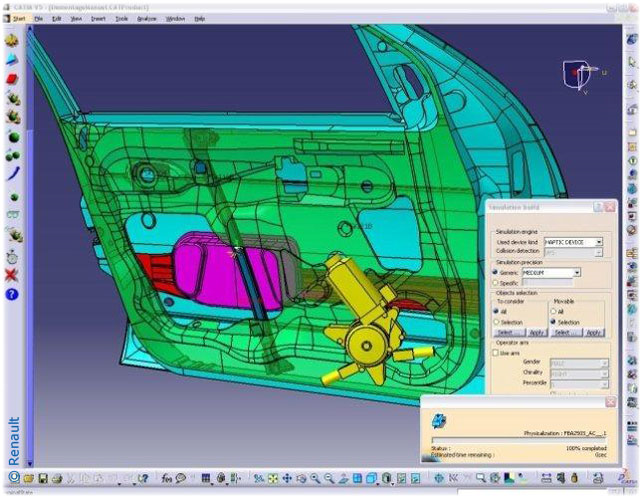

IFC "Interactive Fitting Core for Catia" is a CAAV5-based plug-in for Catia V5TM dedicated to interactive assembly/maintenance simulation based on Haption's IPSI physics engine. Consisting in two sets of V5 commands, it appears as two new toolbars:

• IFC Core provides tools for interactive physic simulation session
• IFC Human complements IFC Core with human simulation functionalities

IFC Core lets you:

• Work with any kind of Catia data: CatPart, CGR, STP, ...
• Feel contact forces and gravity
• Record object motion as Catia tracks, load kinematic constraints from V5 mechanisms
• Control the precision down to sub-millimeter levels
• Use any kind of haptic device (Virtuose, Inca, Able), tracking system (ART, Motion Analysis, VICON, trackd), 6D USB mouse from 3Dconnexion

End of support

The product enters its final year of maintenance starting in January 2026. As of December 31, 2026, it will no longer be supported and can no longer be deployed.

The last supported platform level will be V5-6R2025.
