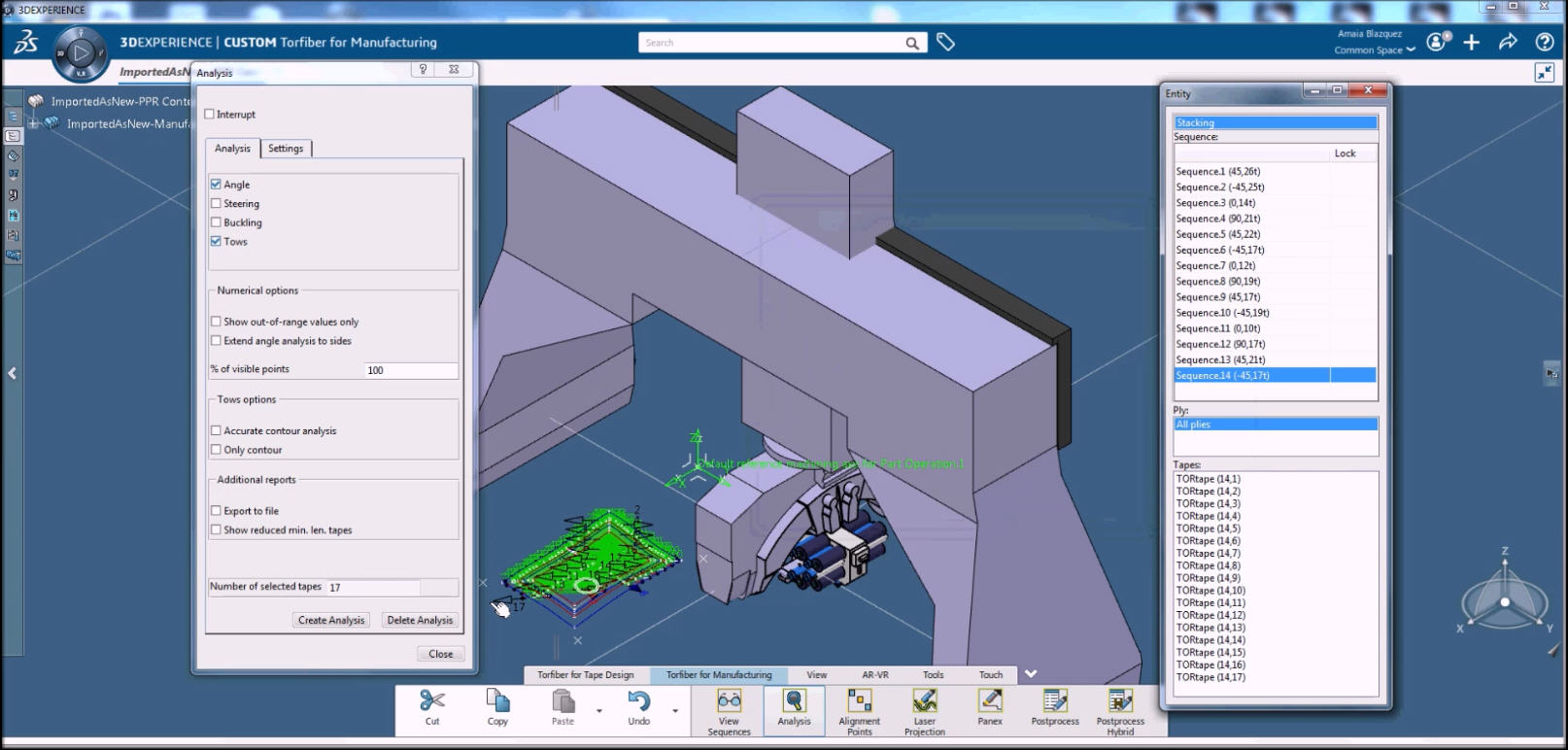

Torfiber Manufacturing for 3DEXPERIENCE
A solution by: MTORRES
Application domain: Manufacturing
Solution Overview
TORFIBER software is focused on design/manufacturing department where carbon fiber part manufactures are going to generate CNC programs to manufacture the part in the TORRESFIBERLAYUP machines.
Benefits
• Torfiber is fully integrated in 3DEXPERIENCE so the user can work with all the standard analysis and design Catia utilities. This application works directly with Catia models so the users don't lose information in translations.
• With Torfiber, the user is able to work directly with all the Catia models the design department has created with Ply information in CPD data base (Ply contour, orientation, material, etc). This is done in the Catia environment.
• Torfiber uses information from the CPD data base Laying Strategy and completes that information.
• Torfiber generates all the laying process information. It is an user friendly application that allows the user to change several laying parameters as tape order, orientation,...
• Torfiber post processes the information in the 3DEXPERIENCE document to generate CNC files.
